X-Pro Digital Image Recorder

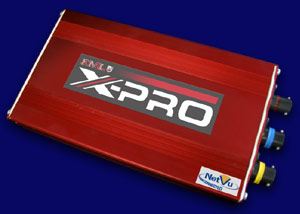

One of the most impressive outcomes of the racetrack partnership between CCTV specialists AD Group and RML has been the development of the X-Pro Digital Image Recorder (DIR).

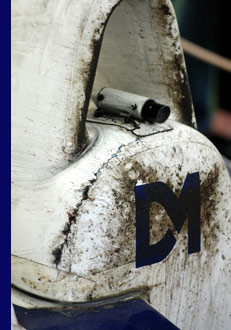

This multi-channel digital recorder has been specifically designed for motor racing and rallying applications, and draws upon the world-beating experience and innovative technology devised by AD Group. Combined with RML’s motorsport pedigree and understanding, and tested to extremes after four years of some of the most demanding track conditions imaginable, the X-Pro DIR is probably the best on-board CCTV package available in motor racing today.

Fully network-capable and using the Internet standard TCP/IP protocol, the X-Pro DIR can be readily accessed via a standard Ethernet connection (10BASE-T and 100BASE-T compatible). Its ability to multiplex and record from up to 8 video cameras¹ whilst also handling 2 audio channels, makes the X-Pro DIR one of the most powerful race recorders available today.

The unit can be configured to record using either the MPEG4 or M-JPEG format at up to 100 frames² per second on a standard removable Compact Flash (CF) Card. X-Pro DIR can also apply different recording rates that allow more important cameras to be prioritised in the recording sequence.

The system can be further configured to alter the recording speed from each of the camera channels by means of three ‘Event’ inputs, making it possible to record any incident at a much faster rate than normal. For example, a camera in the engine bay could be switched to a higher recording rate if the engine oil pressure drops below a preset ‘alarm’ level.

Aside from being able to monitor car performance from previously unimagined angles, one of the greatest strengths of the X-Pro DIR is as a driver training aid. RML’s driver pairing of Thomas Erdos and Mike Newton use footage drawn from on-track practice sessions to improve driving techniques and enhance their understanding of new, and even familiar circuits. Mike attributes his race-on-race personal improvements to the X-Pro DIR.

		X-Pro DIR Features:
		On-board/in-car digital video footage capturing up to 24 hours of coverage on one Compact Flash card
		Prototype versions developed and tested on RML’s MG Lola LMP2 and Saleen S7R cars throughout 2005 and 2006
		Up to 4 cameras recording at one time at 100 fps, or as many as 8 cameras at 50 fps
		Uses standard removable Compact Flash Card for easy transportation, access and exchange of file
		X-Pro DIR Applications:
		Driver training
		Data analysis
		Tyre development
		Mechanical systems investigation
		Aerodynamic testing
		Marketing and PR
		Automotive test and development
		Race incident investigation

The exact specification will depending on chosen unit and the overall capabilities will depend upon the number of cameras connected. See full technical specification below.

For further information about the X-Pro Digital Image Recorder please check out these links:

To visit the X-pro DIR page on the RML factory website and register an enquiry		Website
To visit the main AD Group corporate website at www.ad-group.co.uk		Website

To make a specific enquiry for further information, please click here

Model	X-Pro DIR 1-1	X-Pro DIR 4-1	X-Pro DIR 8-1
Power	Supply Voltage 10 to 30 volts DC Power consumption 7.5W Ignition sensing with auto shut down of system and cameras after preset time. Auto shut down on nominal low voltage detection. Relay controlled power output for supplying power to cameras	Supply Voltage 10 to 30 volts DC Power consumption 7.5W Ignition sensing with auto shut down of system and cameras after preset time. Auto shut down on nominal low voltage detection. Relay controlled power output for supplying power to cameras	Supply Voltage 10 to 30 volts DC Power consumption 7.5W Ignition sensing with auto shut down of system and cameras after preset time. Auto shut down on nominal low voltage detection. Relay controlled power output for supplying power to cameras
Video Inputs	1 input, 75ohm termination, composite 1V peak to peak, colour or monochrome PAL or NTSC software configurable	4 input, 75ohm termination, composite 1V peak to peak, colour or monochrome PAL or NTSC software configurable	8 input, 75ohm termination, composite 1V peak to peak, colour or monochrome PAL or NTSC software configurable
Record Format	M-JPEG, MPEG4 or Multimode	M-JPEG, MPEG4 or Multimode	M-JPEG, MPEG4 or Multimode
Storage Media	Compact Flash (1Gb standard)	Compact Flash (2Gb standard)	Compact Flash (4Gb standard)
Audio Inputs	2 channel line level (1 channel switchable to microphone level with bias) Sensitivity 5mV to 4Vpeak	2 channel line level (1 channel switchable to microphone level with bias) Sensitivity 5mV to 4Vpeak	2 channel line level (1 channel switchable to microphone level with bias) Sensitivity 5mV to 4Vpeak
Connectivity	3 analogue alarm inputs Digital Input for ignition sensing Analogue Input for supply voltage monitoring Debug Port (RS232) 10BASE-T & 100BASE-T Ethernet Port Monitor Output	3 analogue alarm inputs Digital Input for ignition sensing Analogue Input for supply voltage monitoring Debug Port (RS232) 10BASE-T & 100BASE-T Ethernet Port Monitor Output	3 analogue alarm inputs Digital Input for ignition sensing Analogue Input for supply voltage monitoring Debug Port (RS232) 10BASE-T & 100BASE-T Ethernet Port Monitor Output
Environmental	-20°C to +70°C	-20°C to +70°C	-20°C to +70°C
Housing	Extruded Aluminium Case	Carbon Fibre Enclosure	Carbon Fibre Enclosure
Weight	600 g	--	--
Dimensions	185 x 108 x 45 mm	--	--
Interfacing Software	X-Pro X-plorer (PC and Mac)	X-Pro X-plorer (PC and Mac)	X-Pro X-plorer (PC and Mac)

Note: The stated weight excludes the weight of the camera(s) and associated loom(s).
Note: The stated dimensions are approximate, and exclude connector or card slot dimensions.
Important: Features and specifications could be subject to change.
